February 2nd, 2018

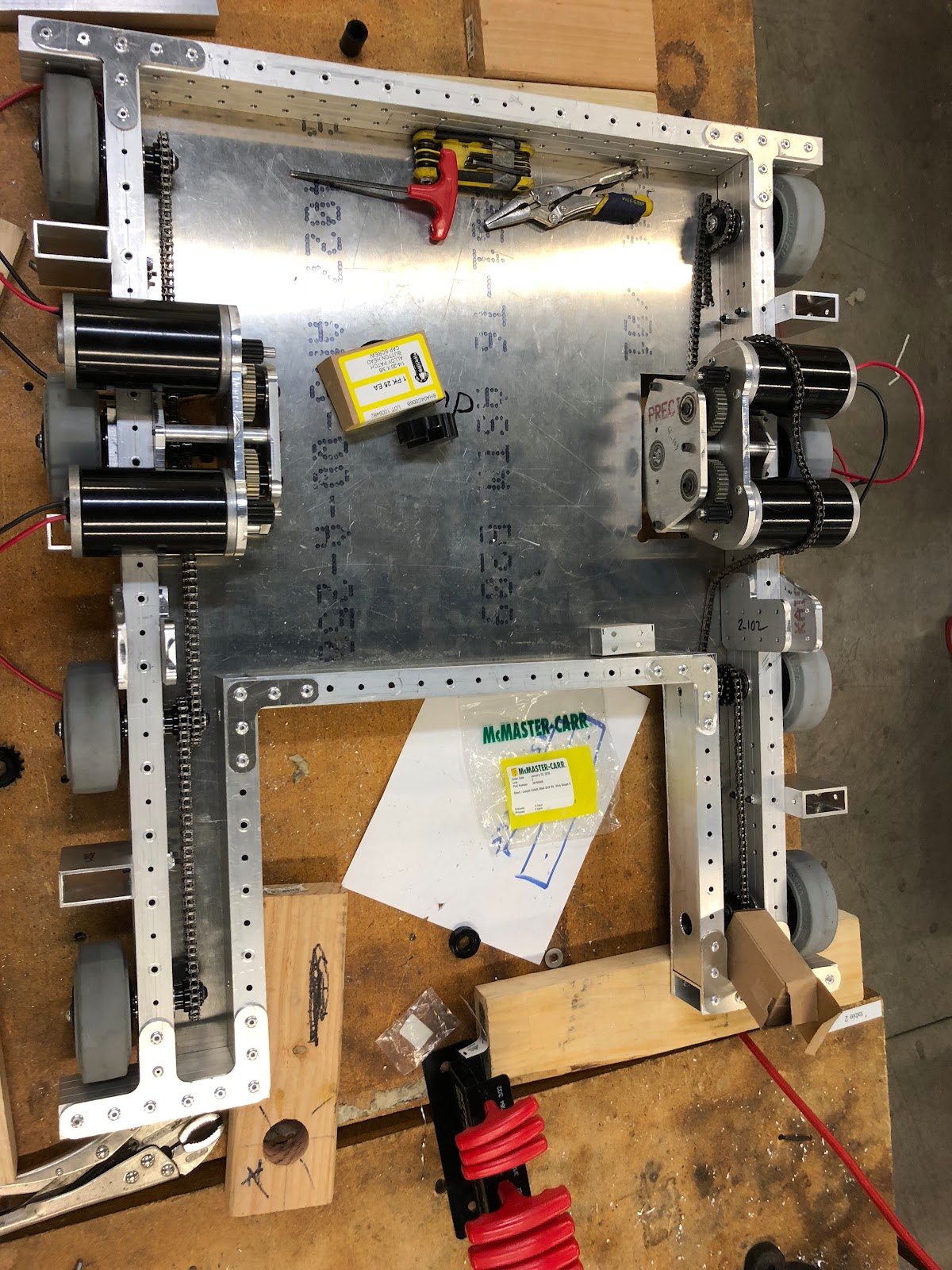

Since today was the opening of the new theater we had to close the lab at 6 which is a little annoying. However, we finished up the long 2x1s for the second stage which is really good. We can start assembling that tomorrow which I am pretty excited for. We wanted to finish the drivetrain by today, but we got held up with the constraining of the output shafts and had to redo some of them. In addition, the chains were created to connect all the wheels.

Comments

Post a Comment

Popular posts from this blog

January 24th, 2018

Another day in the lab. We organized all the parts, wrote the part numbers on them, and marked them as completed or not on the robot spreadsheet. After misreading some of the parts, we sanded 4 2x1s wrong and will have to redo them tomorrow. The CNC is still pumping out the elevator parts, which is always exciting. The lathe was running once again and a lot more of the parts were created. The bellypan on one of the robots has to be redone since there was some metal caught in it so it didn’t make a secure hold. We should get our McMaster order tomorrow so we can really get some work done.
Read more

February 8th, 2018

It was a pretty light day as a lot of people had a good amount of homework due tomorrow. We worked on putting the finishing touches on the carriage, and should be able to mount it once the plates are done. The pistons from automation direct should arrive Monday and we should be able to fully test the robot. The main thing we need to figure out is how to mount the sprockets for the 2nd stage chain run. We will manual mill them tomorrow and hopefully install them. I worked with Chloe on mounting the chain to the first stage by measuring out the hole pattern then bolting it to the carriage. We then attached the 4-40 bolts to secure it to the chain. We also installed the elevator gearbox, which unfortunately will require some of the electrical parts to be relocated which is a pain.
Read more

January 17th, 2018

Today we worked more on CAD, finalizing the elevator mounting positions. In the lab we worked on mounting the PEM nuts for securely fastening the electronics and it is looking quite good. We started to put the gearboxes together, and ran into minor issues w/ clearance but it thankfully fits with some work. We need to get stuff ordered, a couple parts are holding up our assembly.
Read more
