January 9th, 2018

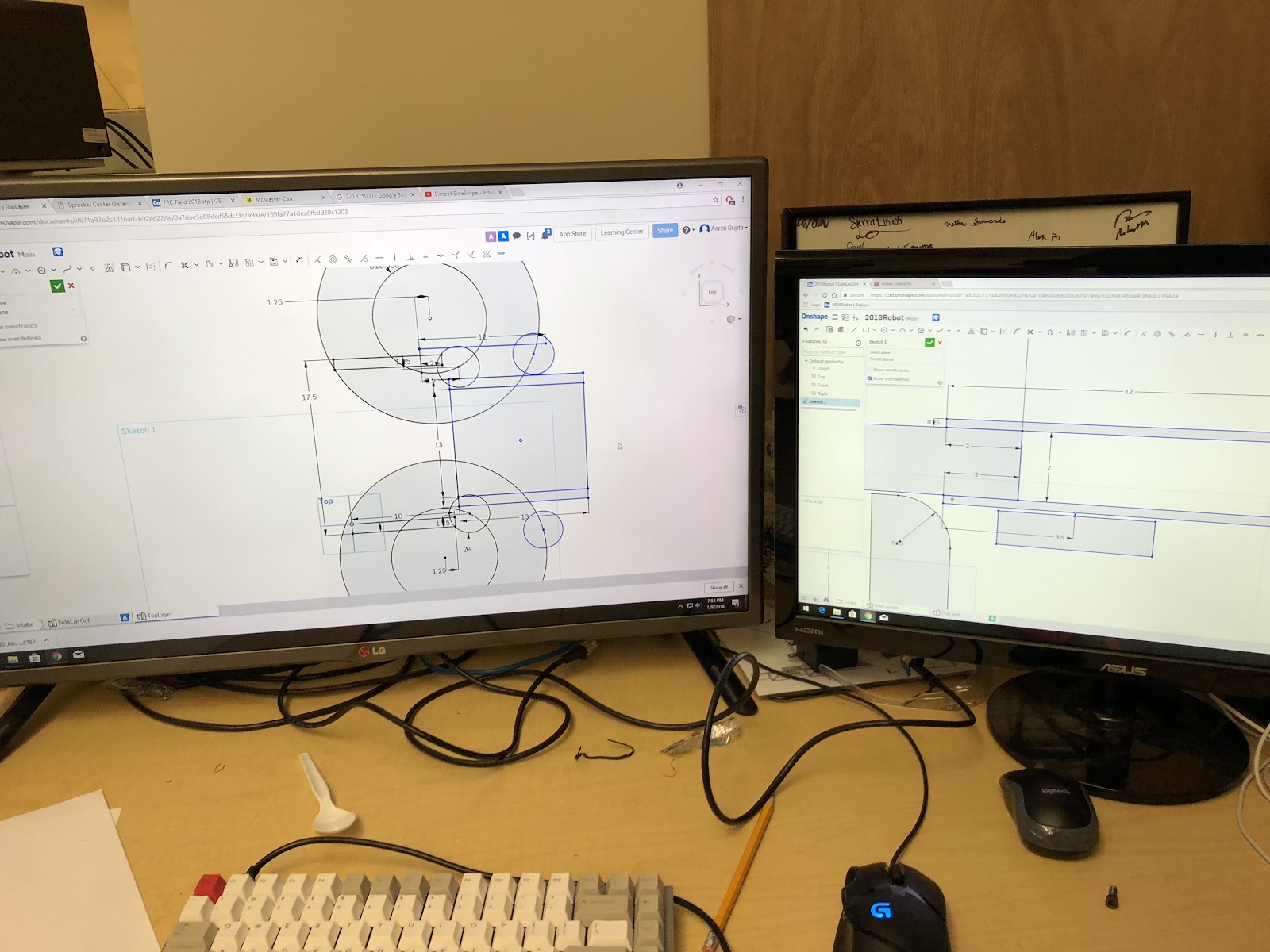

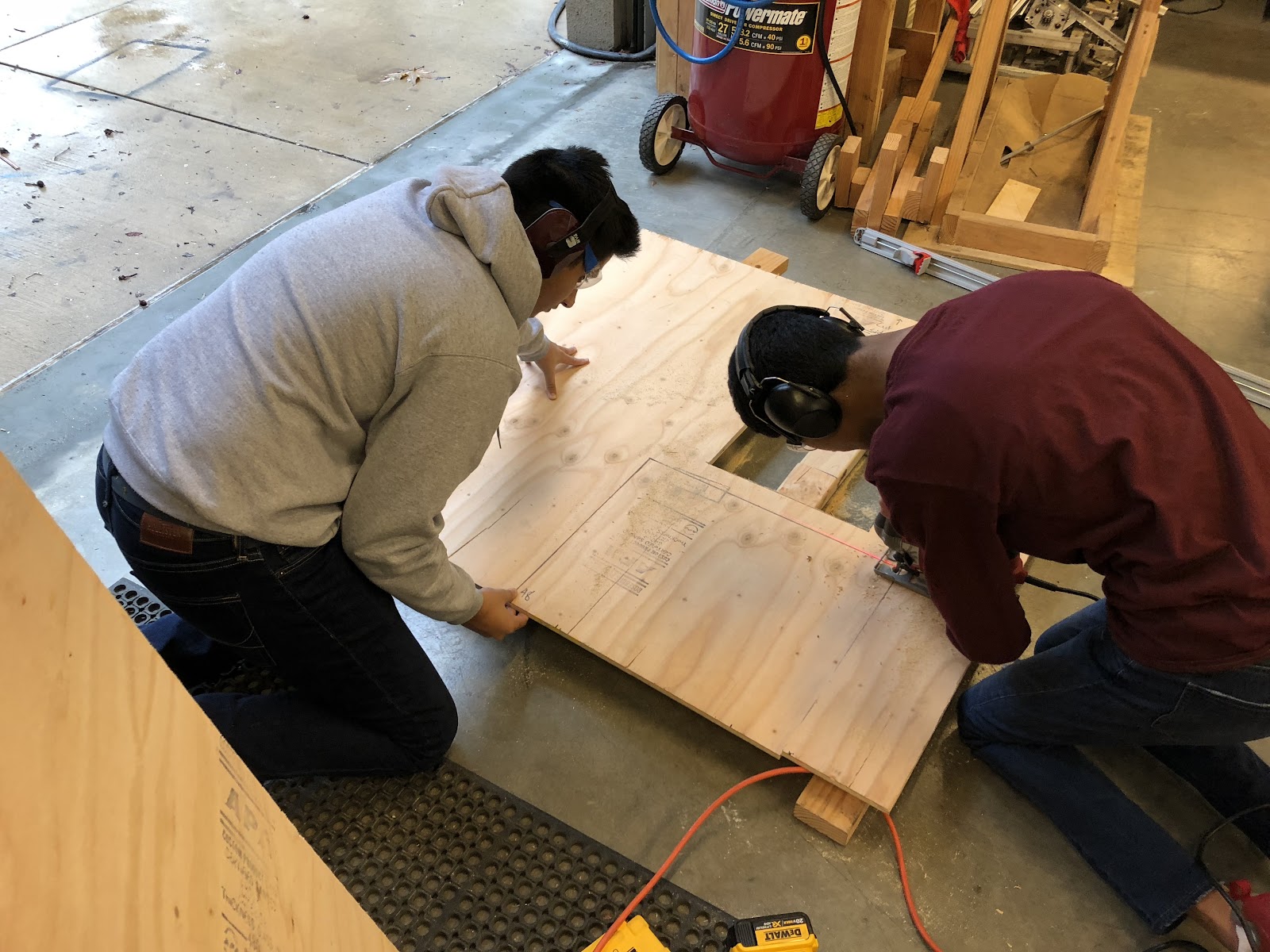

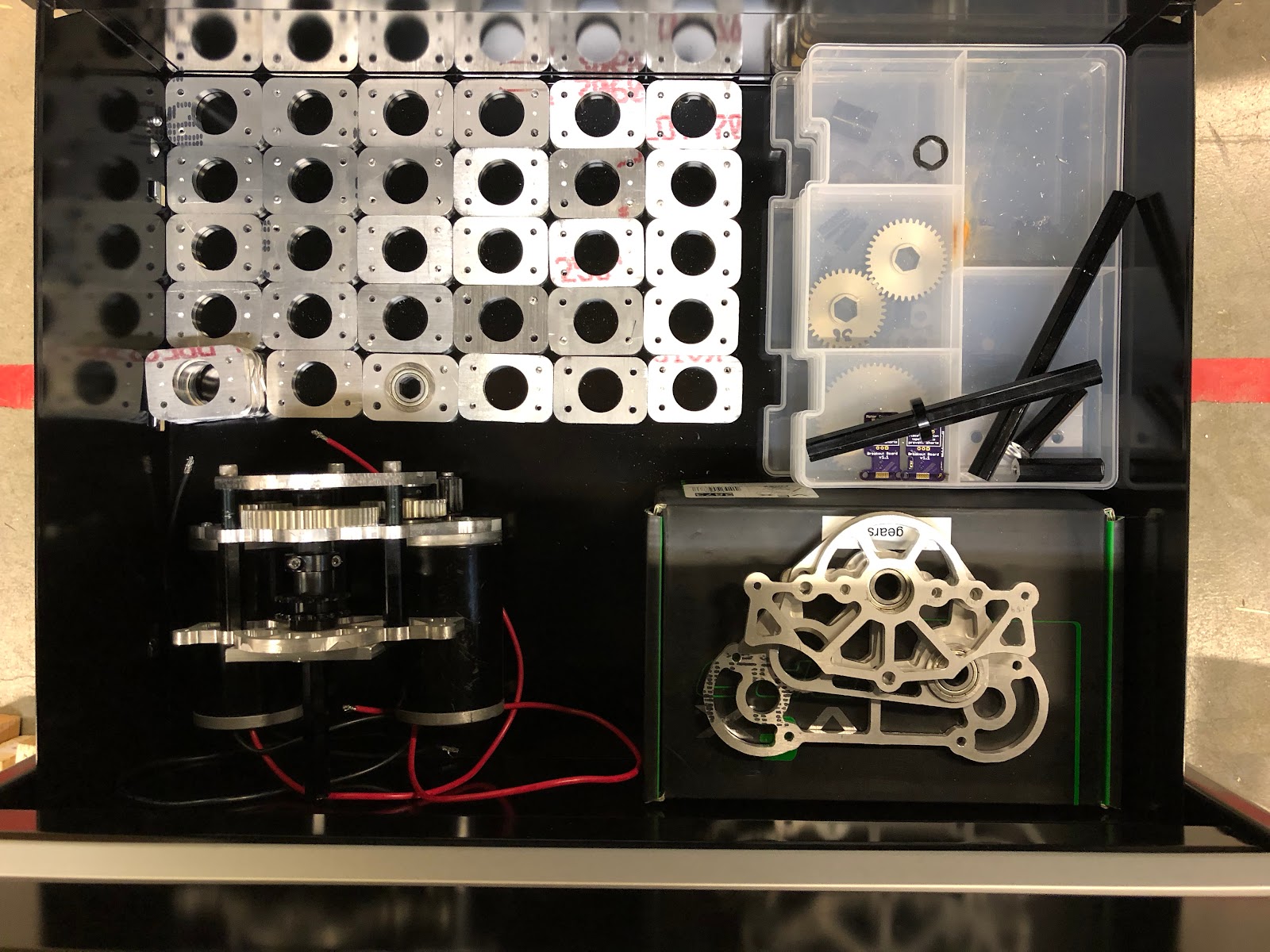

Today we continued work on the field. The machining team finished all the bearing blocks, and there were a lot of them! The prototype got some additions, including 2 more wheels and an extended arm. Prototyping should continue through this week. CAD finished the gearbox and most of the drivetrain and is working on laying out our intake. Drivetrain milling will be tomorrow.
