January 25th, 2018

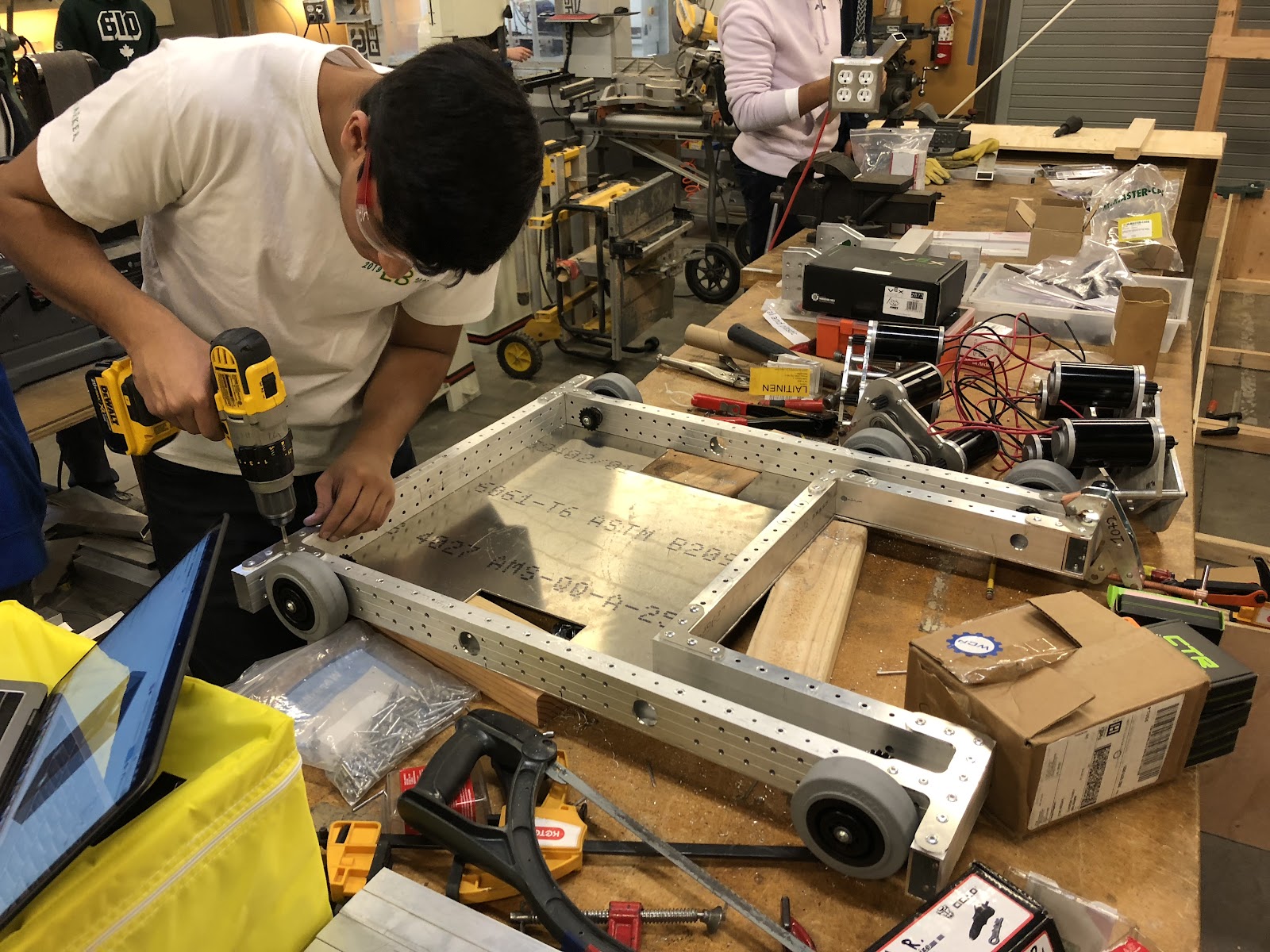

We made a ton of progress today with the arrival of our McMaster order. With the steel spacers we put together all 4 gearboxes. The new tapping head thing we got was super sweet, and we tapped around 50 holes today. Construction tomorrow will really go into full swing. The cnc was finishing up our plates, and Rohan faced off some more 2x1 to go into the CNC. All the encoders were mounted to our custom 3d printed mounts which look pretty good. Excited for tomorrow!
